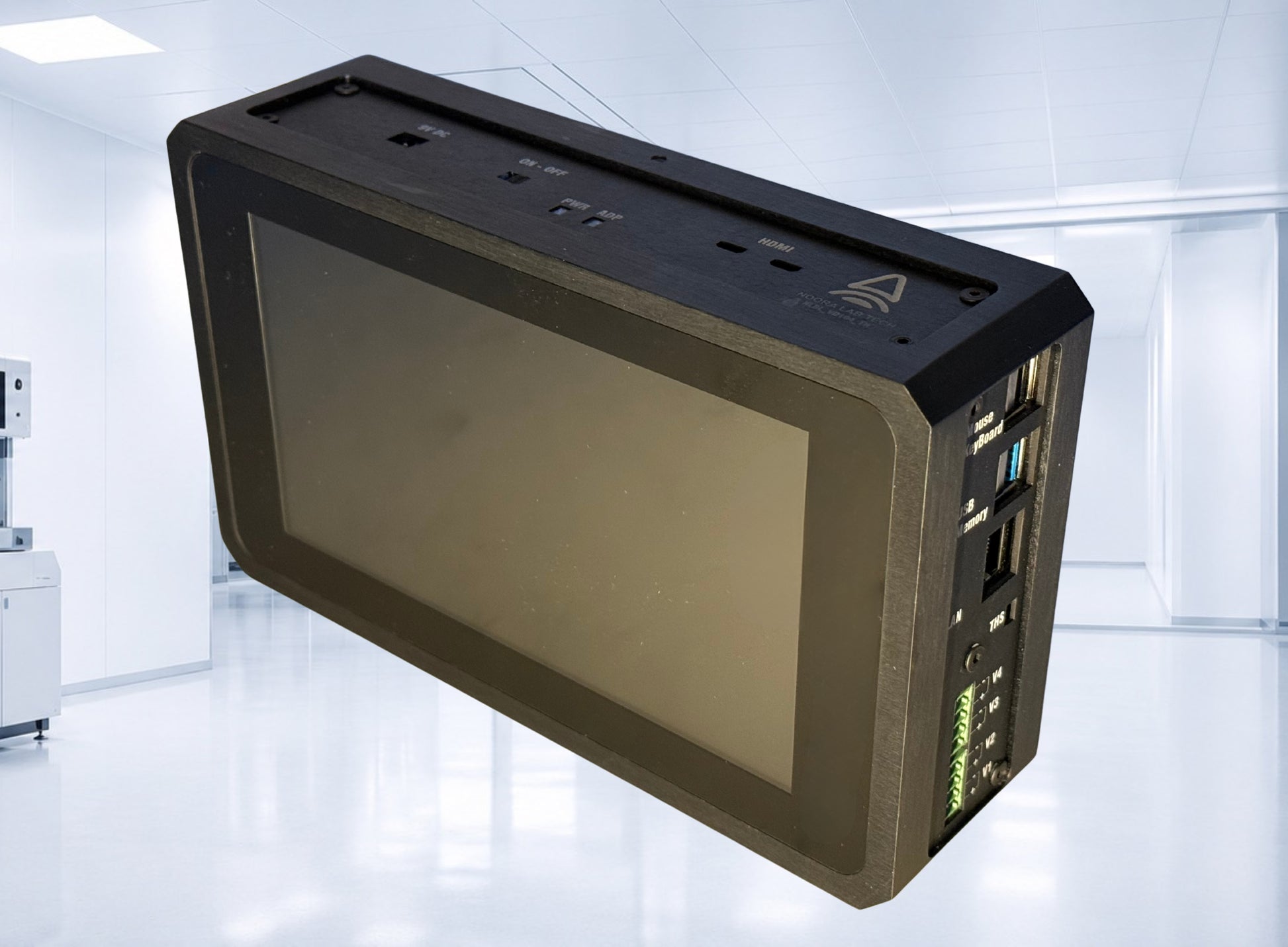

4-Channel Voltage Logger with Integrated Temperature & Humidity Sensor
4-Channel Voltage Logger with Integrated Temperature & Humidity Sensor
Advanced hybrid data logger with 7″ touchscreen and Wi-Fi/USB connectivity, designed for precision, flexibility, and smart error logging.
Share
The Precision Data Logger is an advanced measurement solution designed for high-accuracy monitoring of voltage, temperature, and humidity in demanding laboratory and industrial applications.It is equipped with four differential voltage channels, Digital I/O (4 inputs and 4 outputs), and an integrated temperature & humidity sensor, providing precise and reliable data acquisition across a wide range of applications.
Unlike conventional data loggers, this device continuously monitors input signals in real time and features an advanced error detection and logging system that records every anomaly in a dedicated error file, even during power interruptions, thanks to its built-in rechargeable batteries.

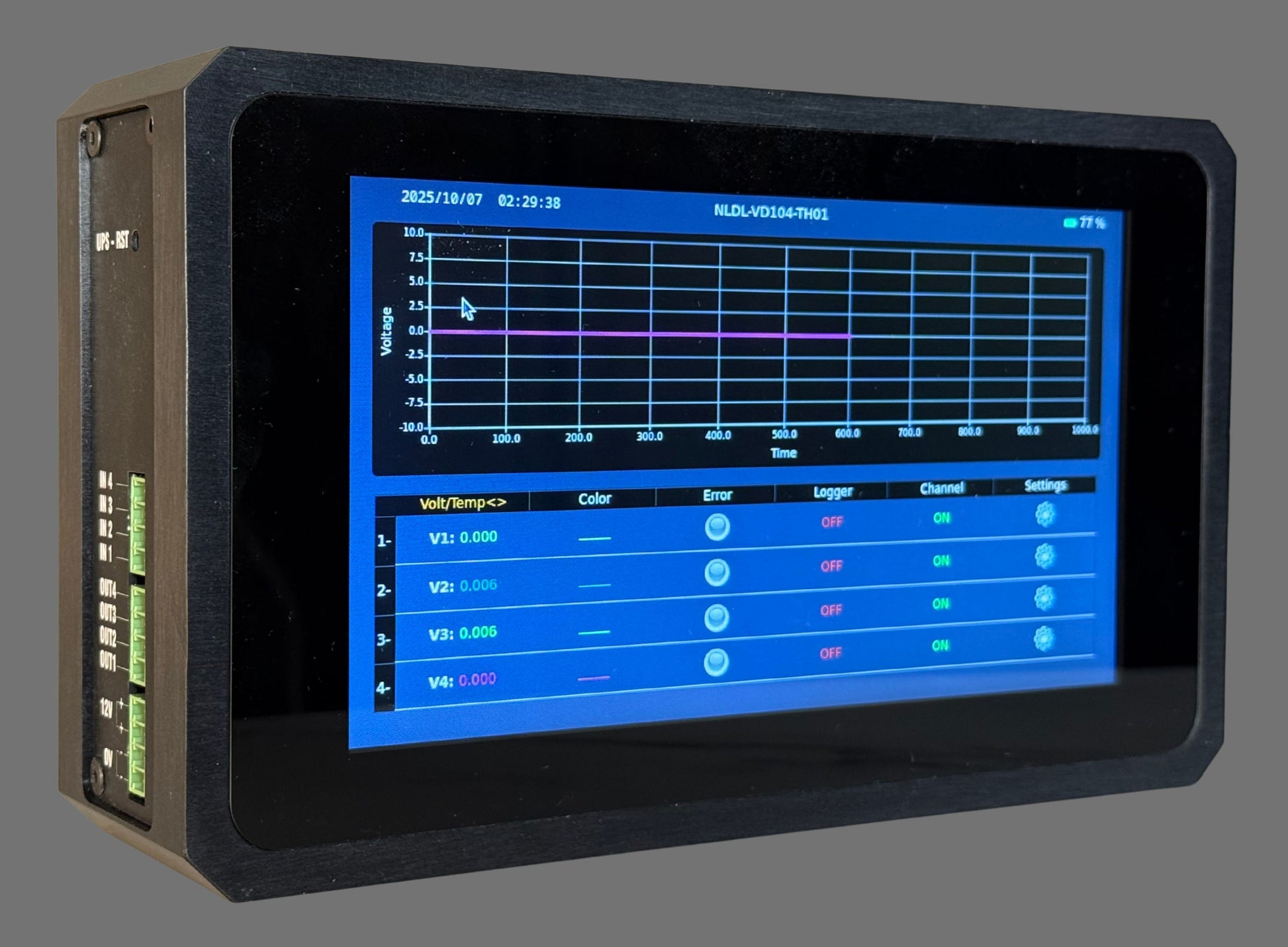

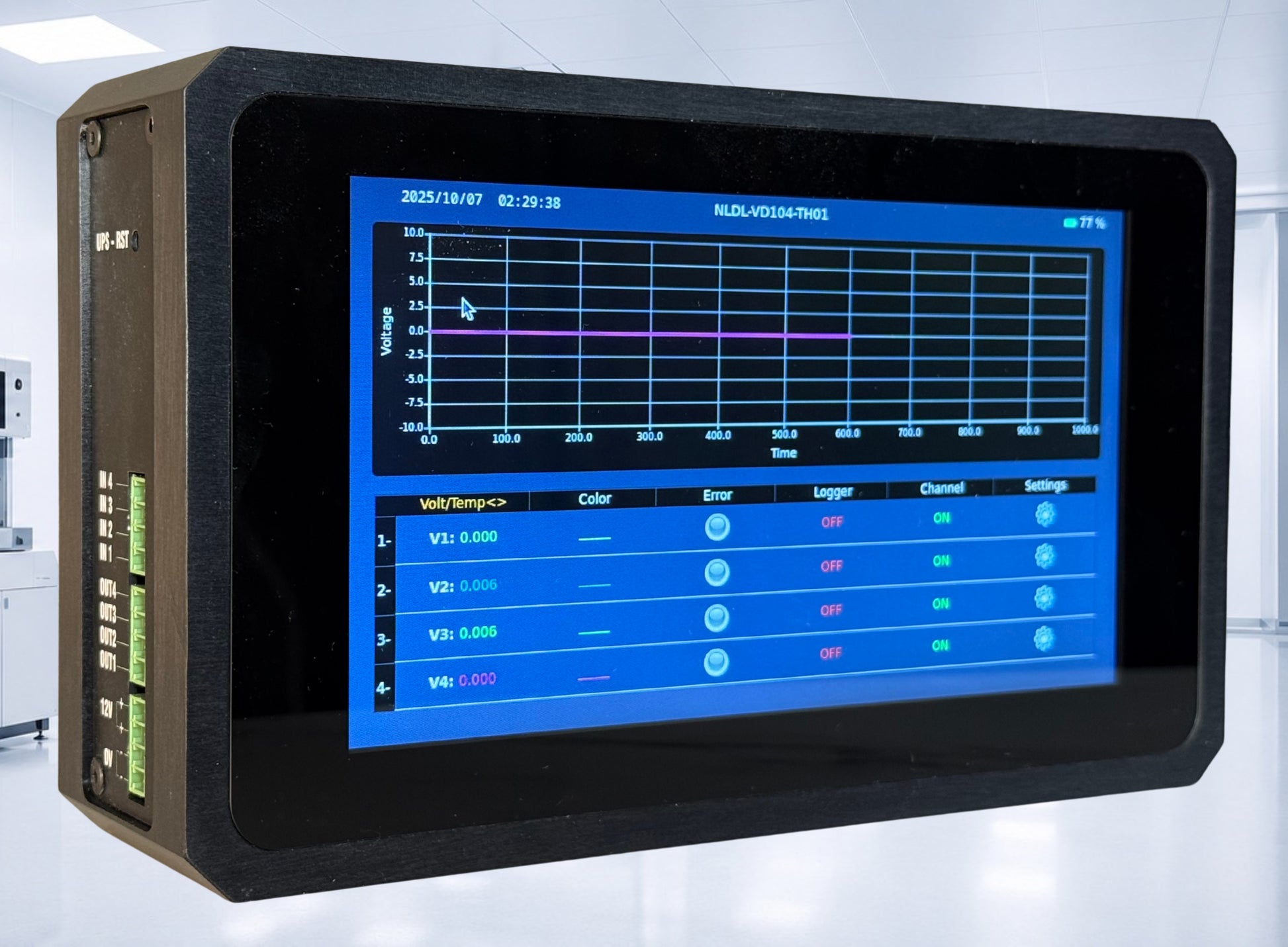

For seamless usability, the logger includes a 7-inch capacitive touchscreen with a user-friendly interface, designed for intuitive operation even in cleanroom environments. Data can be accessed and controlled via Wi-Fi, LAN, or USB, or displayed on a larger screen using the HDMI output. The unit also supports direct connection of a keyboard and mousefor full desktop-style operation.
In terms of storage, it offers built-in memory options for standalone logging and supports external memory devices such as USB flash drives or SSDs, ensuring flexibility, reliability, and extended recording capacity.
Specifications:
- 4 Differential Voltage Channels & Integrated Temperature & Humidity Sensor
- Adjustable from 50 ms to 1 min
- 1 MΩ Isolated Input System prevents signal interference between channels
- Supports ±0.006 V to ±12 V
- Alarm History for event tracking and system status review
- Digital I/O Interface: Hardware standard, software optional (4 inputs / 4 outputs)
- Sampling Rate: Up to 30 kS/s per channel for high-speed data acquisition
- Independent Data & Error Logging – No Event Overlooked
- Internal Storage Options: Available with 64 GB, 128 GB, or 256 GB
- External Storage Compatibility: Supports USB flash drives and SSDs up to 2 TB
- Uninterrupted Logging – Auto-Switch to Internal Memory when external storage is removed or fails

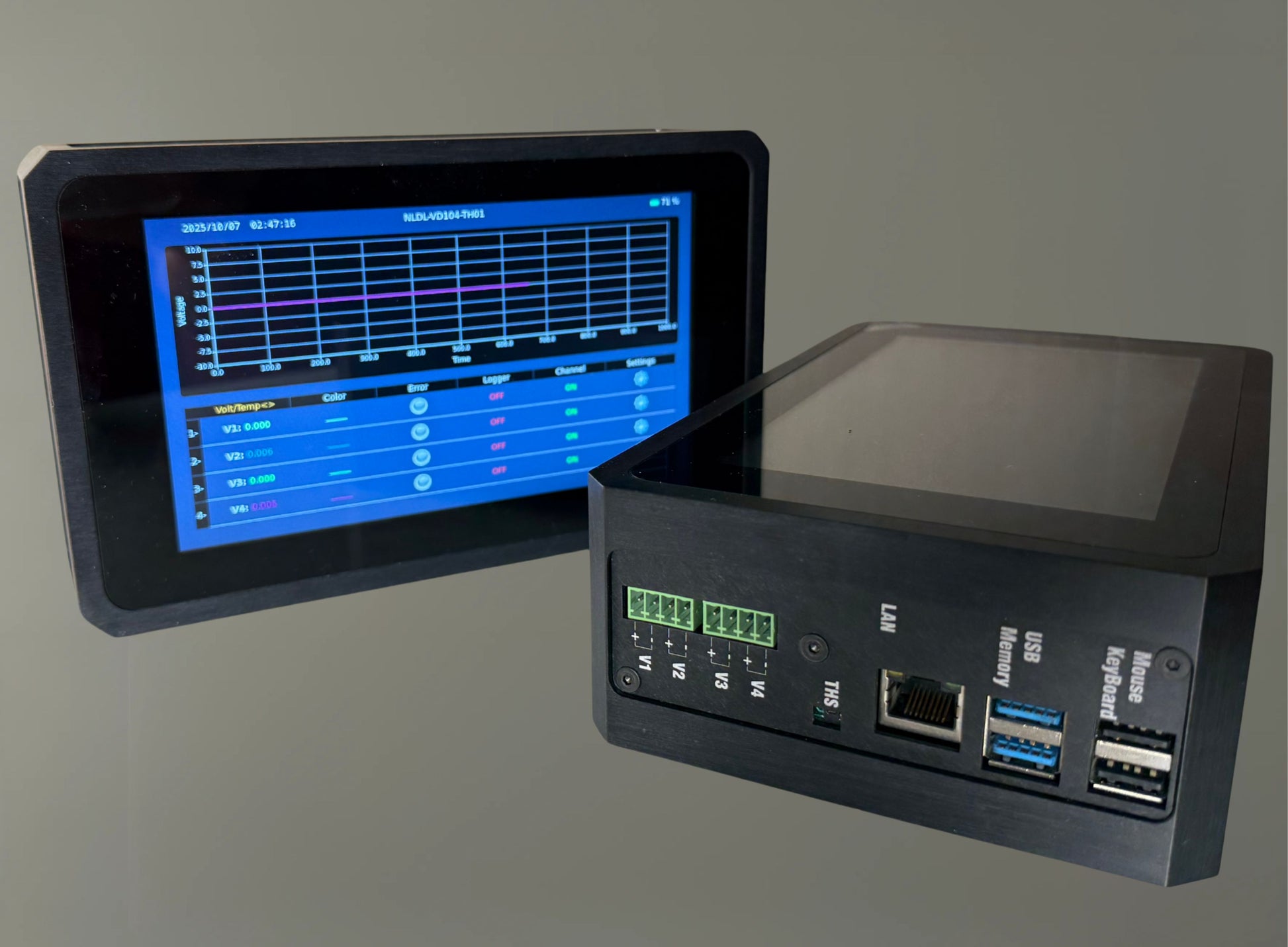

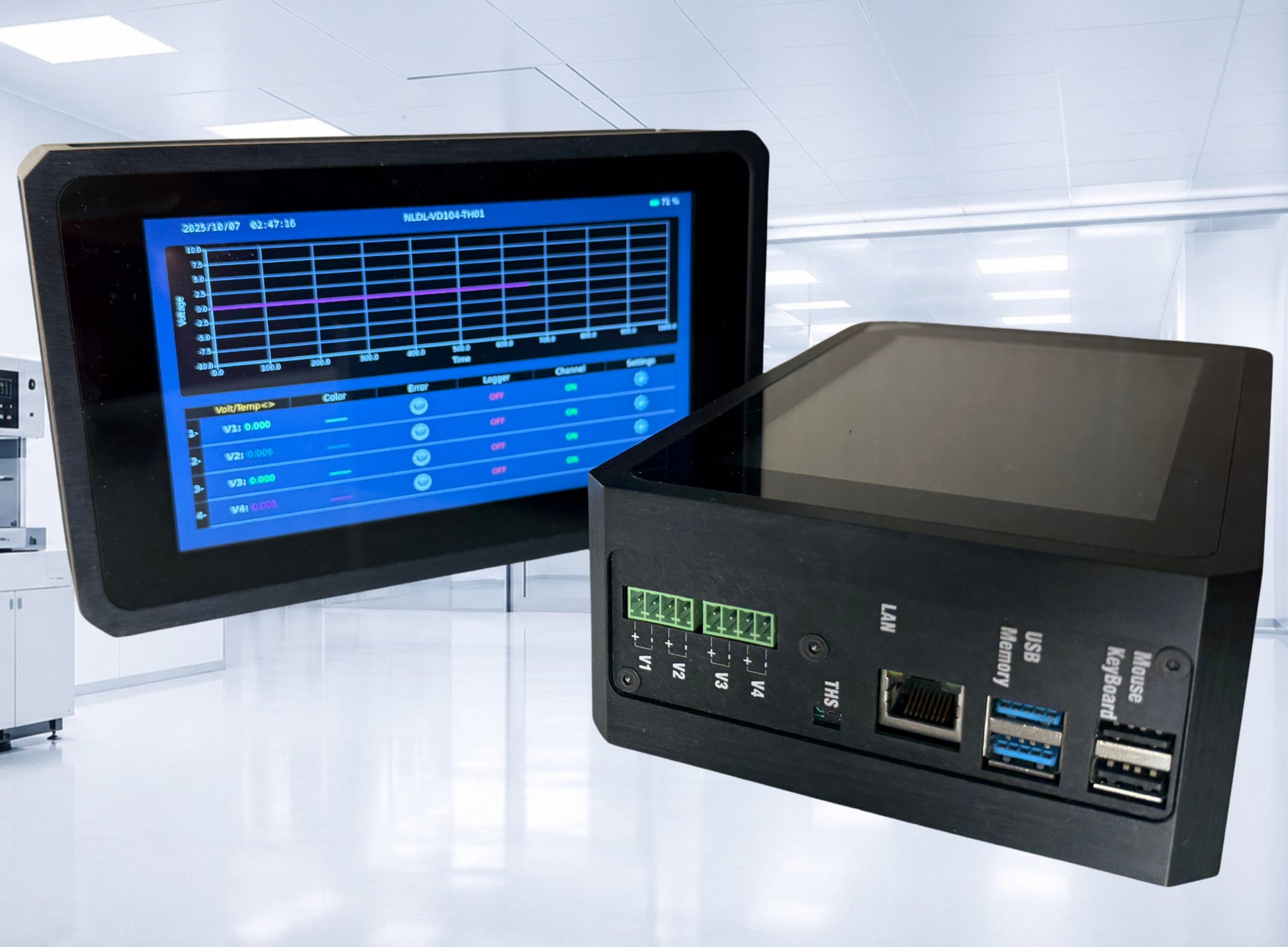

- Two USB 2.0 ports for keyboard and mouse connection; two USB 3.0 ports for high-speed external memory
- Supports Wi-Fi and LAN for remote access and data transfer (Optional)
- Micro HDMI outputs for connection to external displays
- Supports remote screen access via VNC Viewer
- Built-in Battery System for up to 3 hours of continuous operation

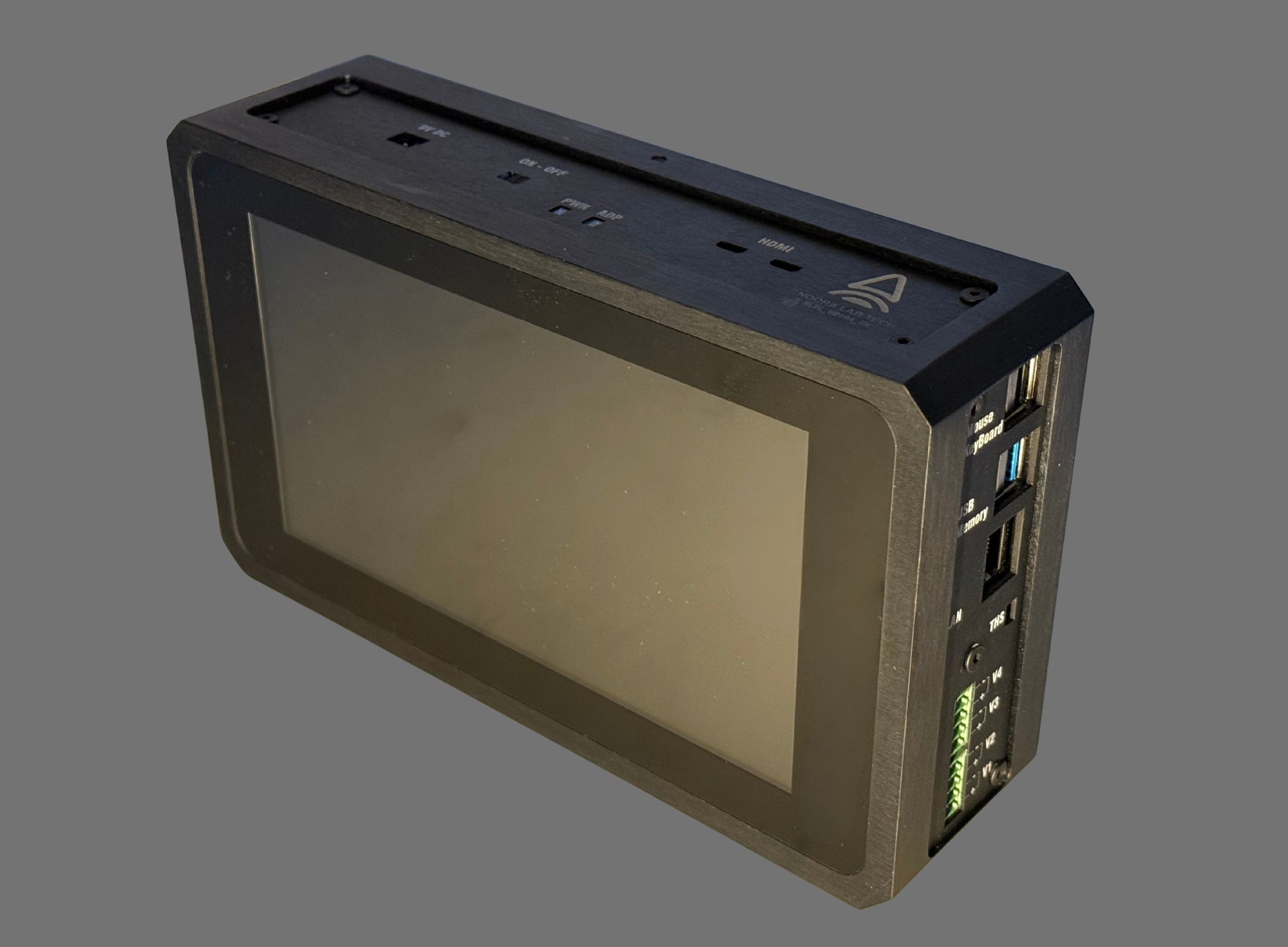

- Aluminum Enclosure
- Dimensions: 8.15 × 4.92 × 2.28 in (207 × 125 × 58 mm)
› 12-bit Differential Analog Input Module:
Measures up to ±12 V with high precision and 1 MΩ input isolation to ensure noise-free voltage acquisition, supporting a sampling rate of up to 30 kS/s across all channels.
› Digital I/O Interface:

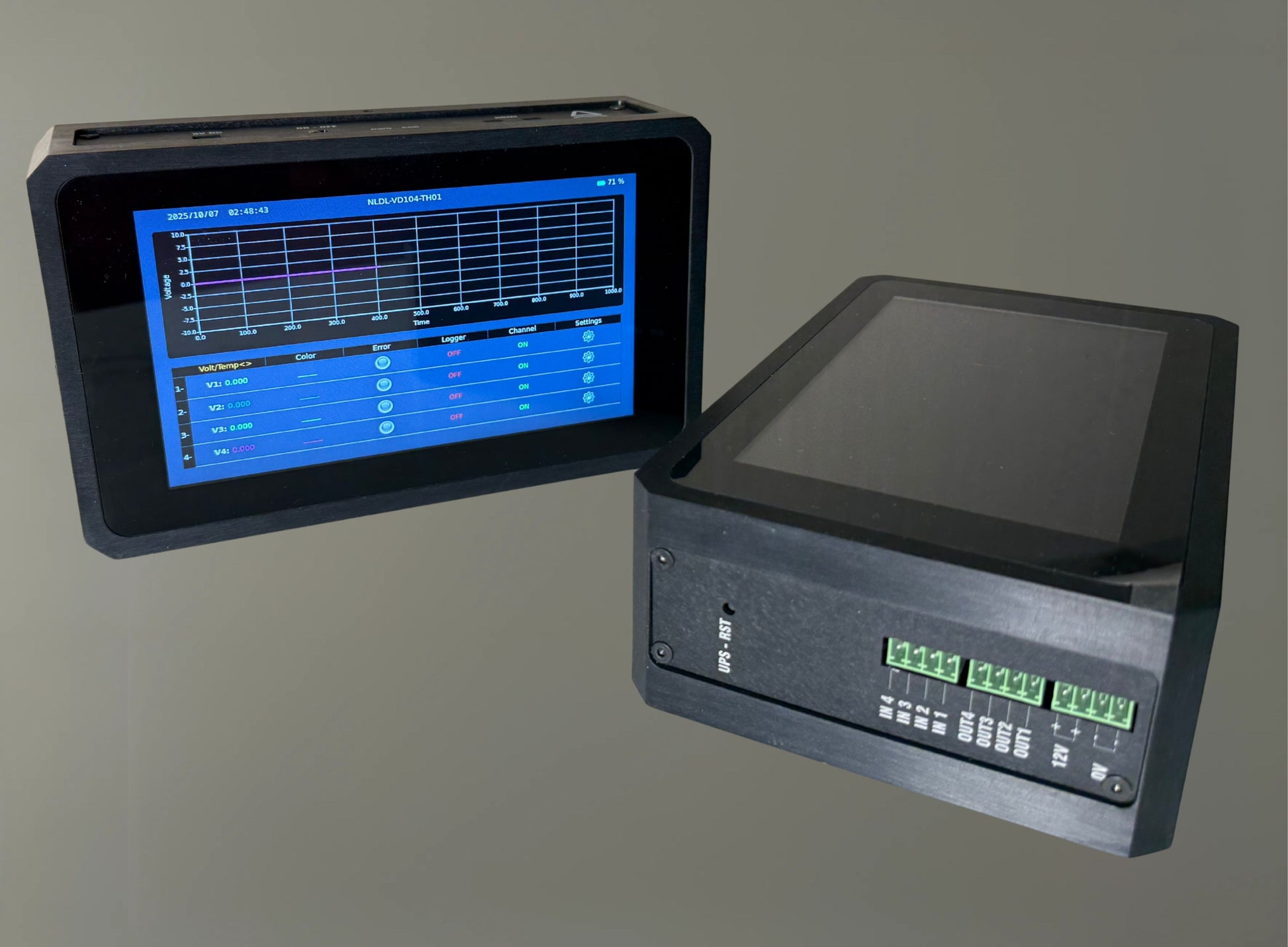

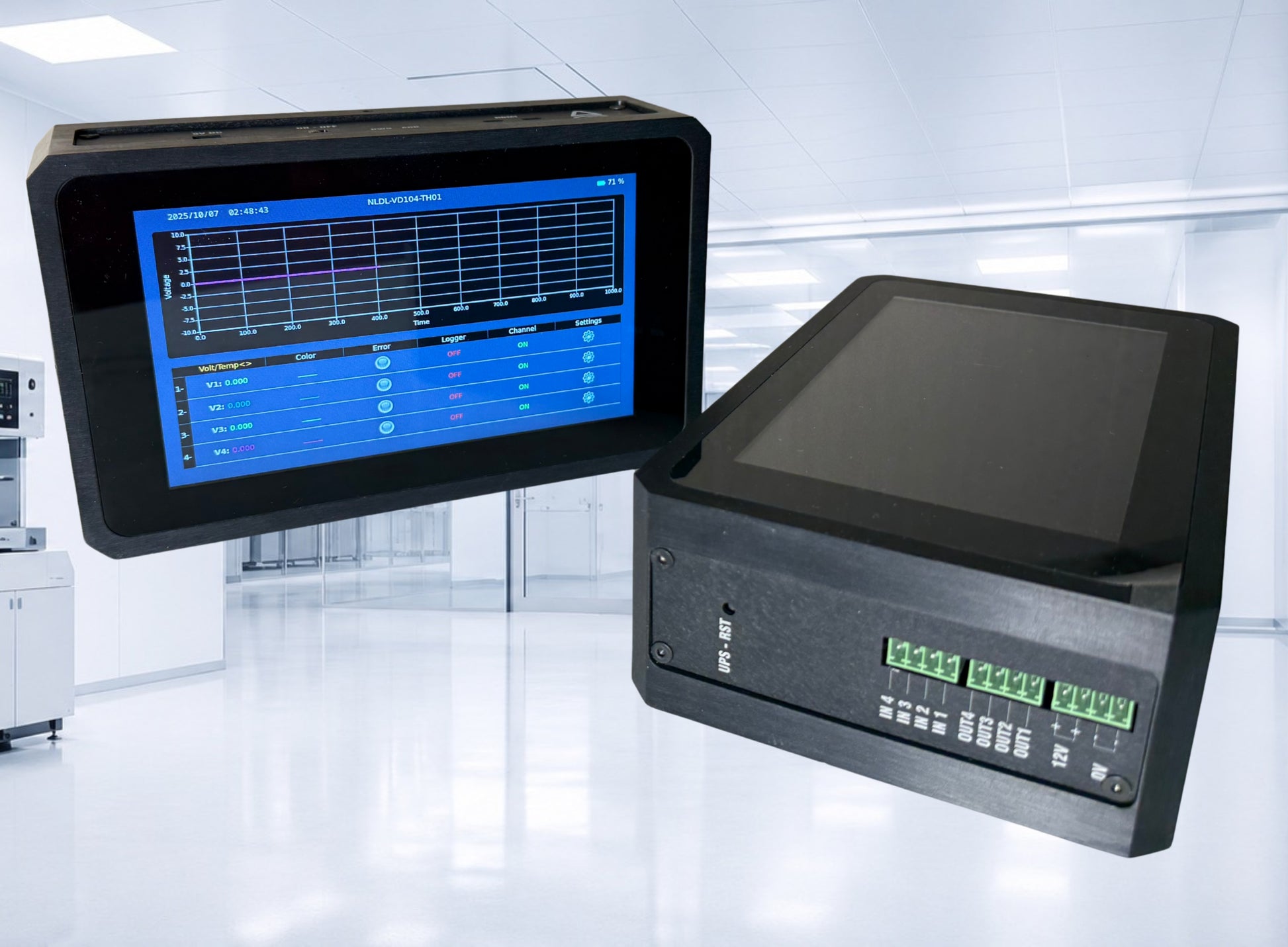

Equipped with 4 digital input and 4 digital output channels, supporting signal levels up to 12 V, enabling flexible control and seamless interaction with external systems. (Hardware standard, software optional )
› Real-Time Error Monitoring System:
Unlike conventional data loggers that may overlook transient faults occurring between sampling intervals, this device continuously monitors input signals independently of the main sampling rate.
Even if the logging interval is set to several seconds, any voltage anomaly or threshold violation that occurs between two samples is instantly detected and stored in a dedicated error file.
This ensures that no transient event is ever missed, providing a complete and reliable record of system performance.
› User-Friendly Operation and Display:

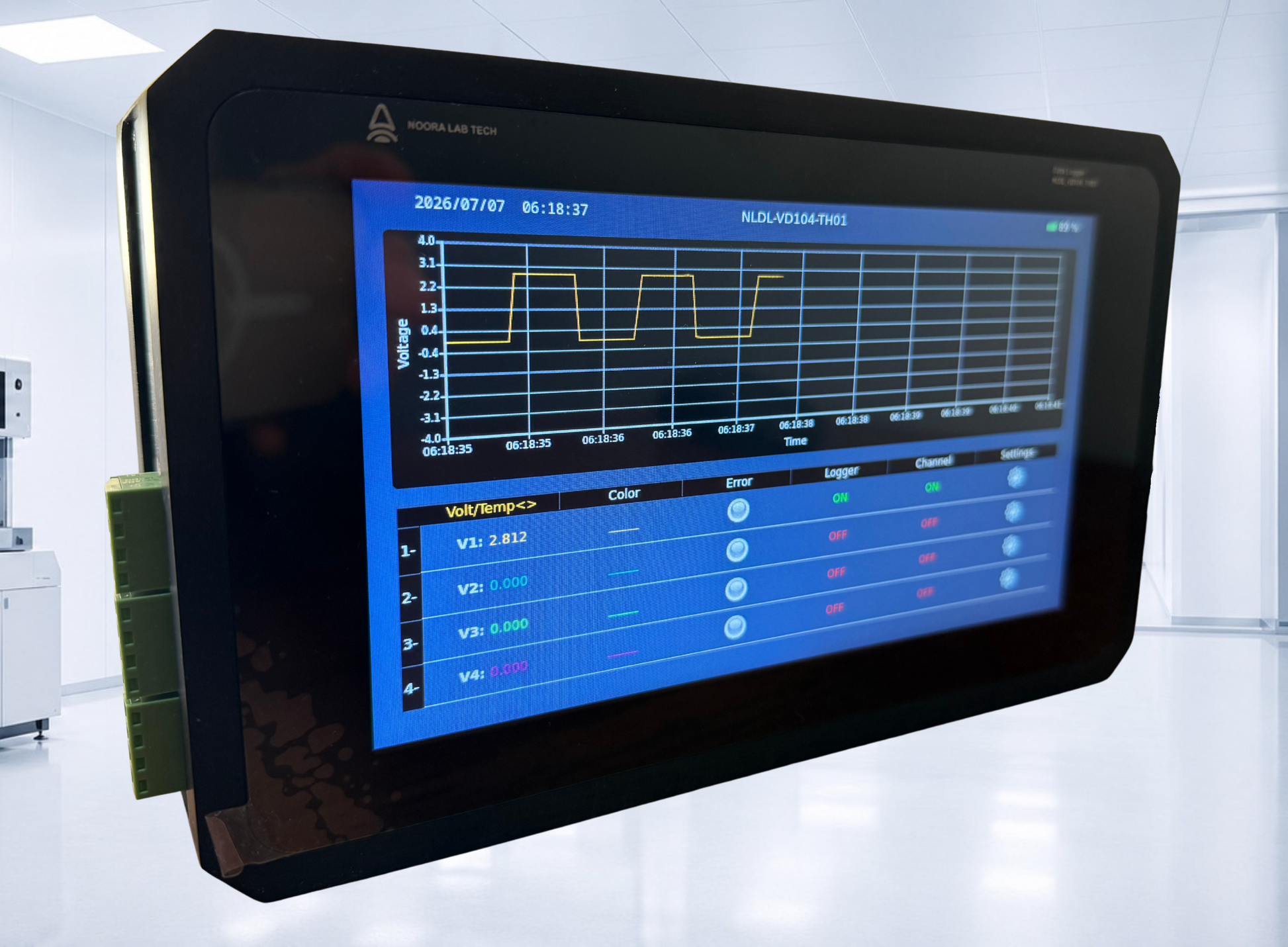

Features a 7-inch capacitive touchscreen with an intuitive and responsive interface, allowing direct operation and real-time visualization of logged data.
› Flexible Connectivity and Control:
Supports Wi-Fi, LAN, and USB connections for remote access, configuration, and data transfer.
Provides dual micro HDMI outputs for connection to external monitors, enabling full-size visualization and presentation of live data.
Additionally, a keyboard and mouse can be directly connected to the unit, allowing complete desktop-style control without requiring a host PC.
The system also supports remote access via VNC Viewer, providing full interface control from any PC or mobile device on the same network.
› Internal Storage Options:
Available with 64 GB, 128 GB, or 256 GB of built-in memory, providing sufficient capacity for continuous and long-term data logging.
External Storage Compatibility:
Supports both USB flash drives and USB 3.0 SSD hard drives for extended data storage.
The device supports external drives up to 2 TB, ensuring optimal performance and flexibility.
› Built-in Battery System:
Operates for up to 3 hours on dual 3,500 mAh lithium batteries, ensuring uninterrupted operation during power loss or portable field use.
› Integrated Temperature & Humidity Sensor:
- Temperature Accuracy: ±0.54 °F ( ±0.3 °C )
- Temperature Measurement Range: –40 °F to +257 °F ( –40 °C to +125 °C )
- Humidity Operating Range: 0 to 100 %RH
- Humidity Accuracy: ±3 %RH
