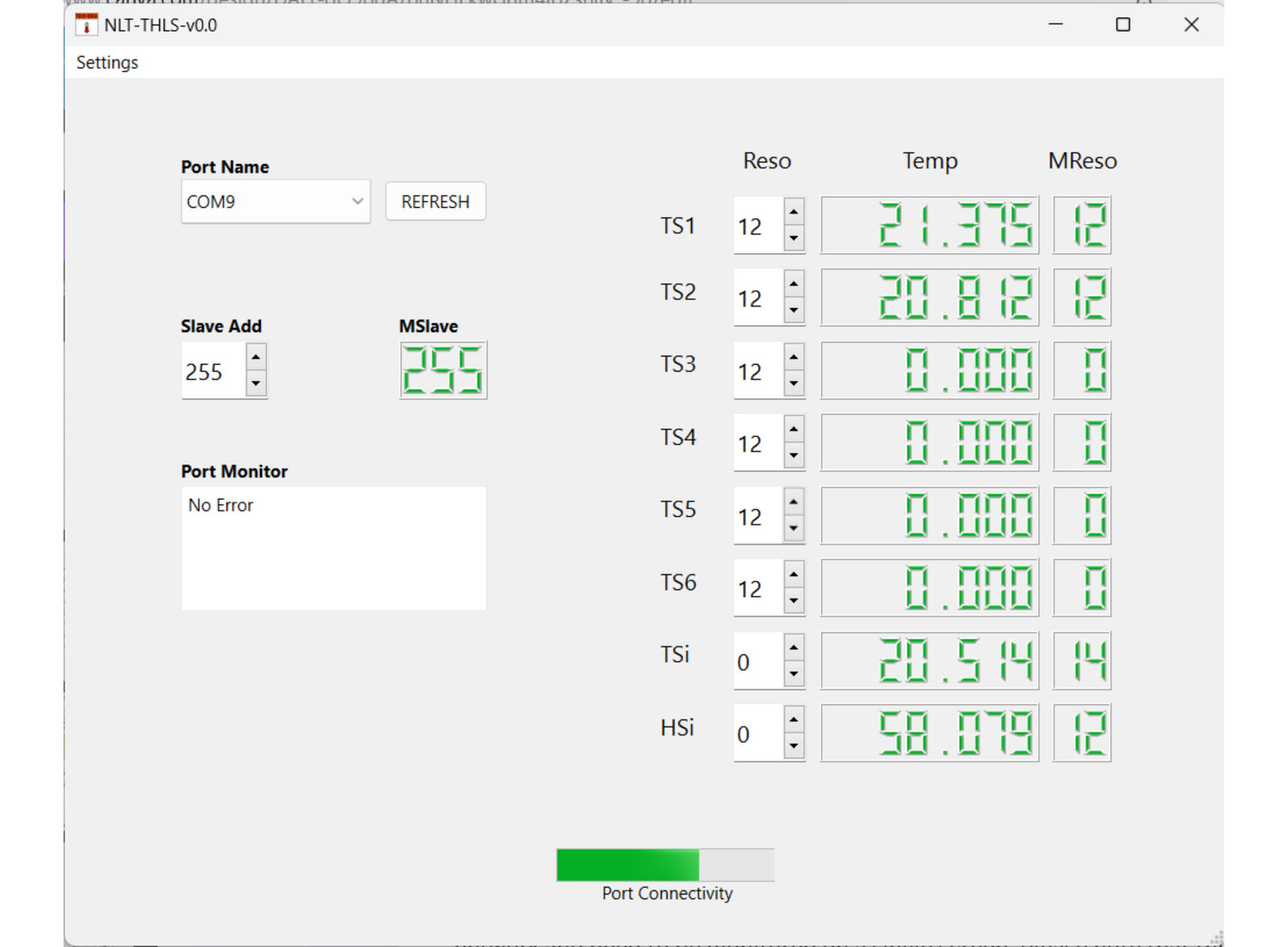

NLT-THLS – Windows Software Interface:
The software displays real-time temperature and humidity readings directly on screen.
- TS1 and TS2 show the temperatures measured by the external wired sensors.
- TSi and HSi represent the internal temperature and humidity sensors of the device.

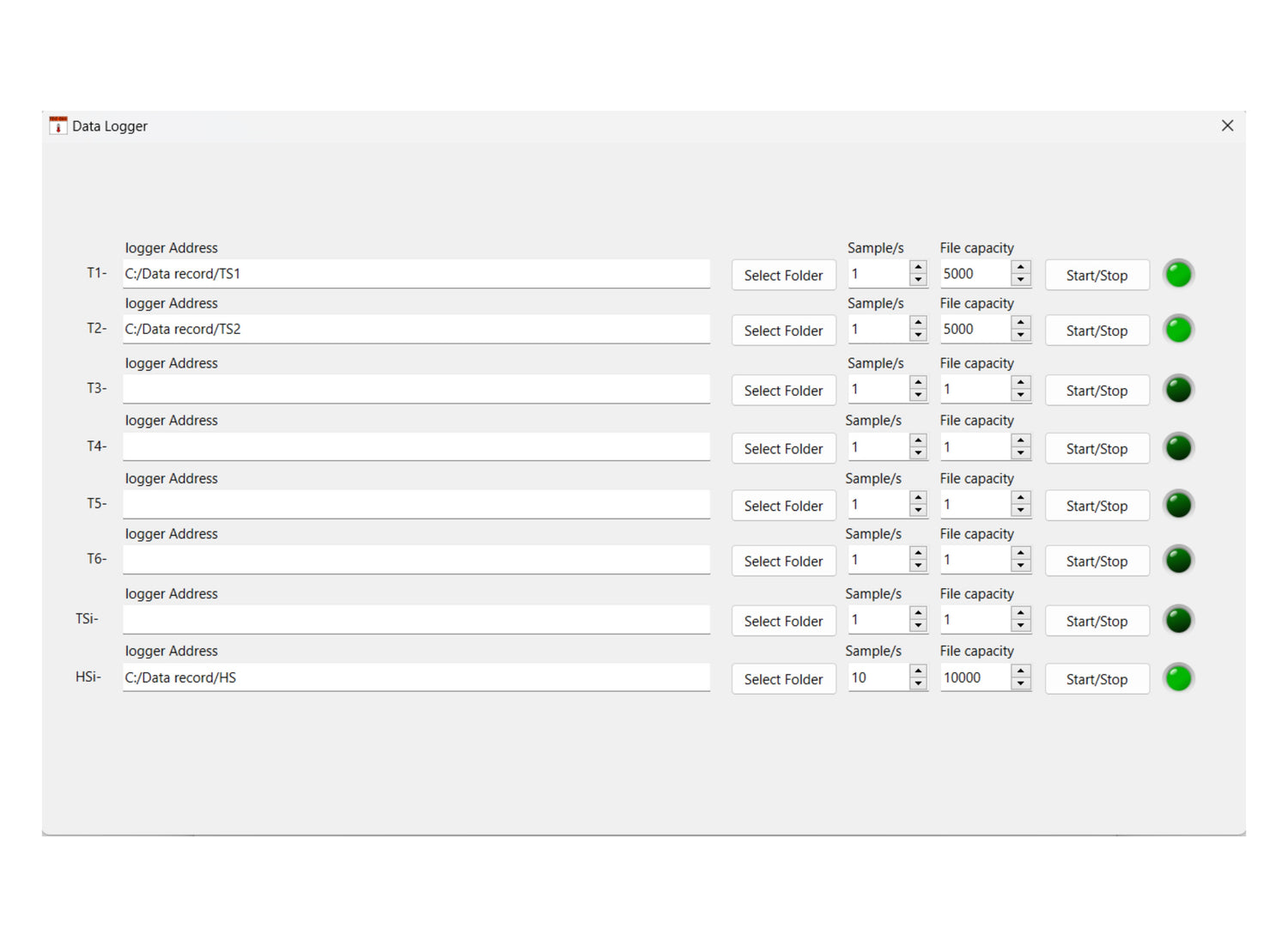

Sample Interval
The "Sample" field defines the time interval between each data recording, measured in seconds. You can enter any value from 1 to 65,535 seconds.
File Capacity
The "File Capacity" field sets the maximum number of data records per file. Acceptable values range from 1 to 10,000.
All recorded data is automatically saved as TXT files in the designated folder. Each file includes date, time, and sensor values for temperature and humidity.
