Ultra Low Vibration Shutter (Shutter: NLSH01-M4 / Controller:CSC-MXN)
Ultra Low Vibration Shutter (Shutter: NLSH01-M4 / Controller:CSC-MXN)
› Silent, smooth operation
› Shock- and vibration-free
› Connect up to 8 shutters
› Programmable motion curves
› Easy PC integration
› Fast, simplified setup
› Premium PVD-coated body
› Direct optical table mounting
Share
Key Features:
› Silent, smooth operationwith no clicking or knocking sounds
› Shock- and vibration-freeperformance for greater stability
› Connect up to 8 shuttersto a single external controller via USB
› Programmable motion curvesfor precise, customized control
› Easy PC integrationwith USB connection to the controller
› Fast, simplified setupto save time and reduce complexity
› Premium PVD-coated bodyfor durability and sleek appearance
› Direct optical table mountingfor seamless system integration
The NLSH01-M4 is a compact mechanical shutter engineered for ultra-low vibration performance, making it ideal for optical tables and systems that demand a vibration-free environment. It is particularly well-suited for OEM integration, offering reliable operation and cost-efficiency in high-volume applications.
The blade features a durable stainless steel finish and is mounted on a motor with unlimited rotation capability. Its full 360-degree rotation range enables smooth, precise transitions between positions without introducing shock or vibration.
Collapsible content
Shutter Physical Specifications
- Aperture Diameter: 0.5" (12.7 mm)
- Number of Blades: One
- Outer Diameter: 2.75" (70 mm)
- Thickness: 1.16" (29.5 mm)
- Mounting Through Holes: One, Ø0.1575"(Ø4 mm)
- Cable Length (USB Type A): 53.15" (1350 mm)

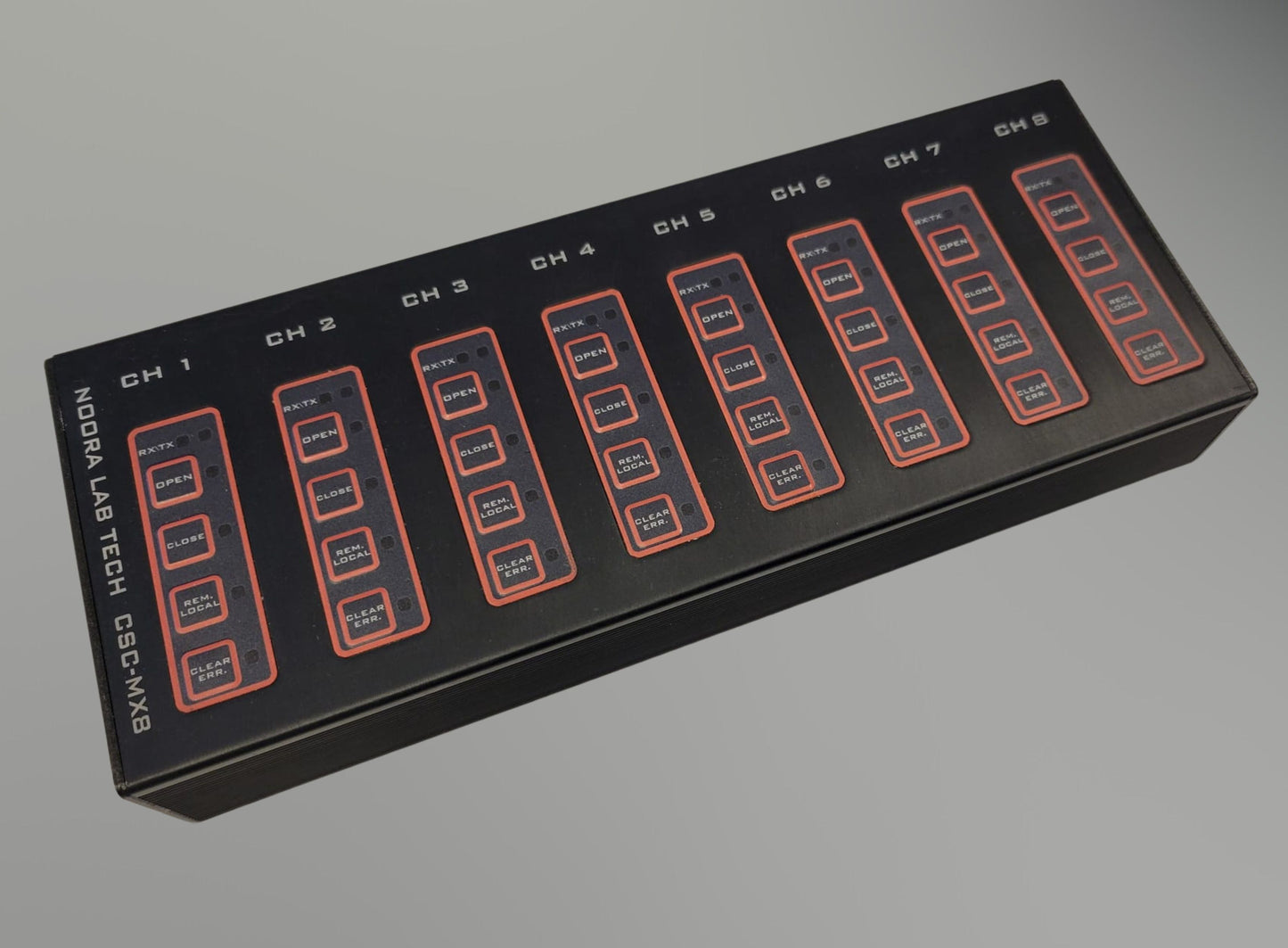

Controller Physical Specifications
- Dimensions: 9.57" x 3.89" x 1.34" (243 x 99 x 34 mm)
- Weight: 0.77 lbs (350 gr)
- Cable Length(USB Type B): 70.86" (1800 mm)
Shutter Electrical Specifications
- Coil Resistance: 30 Ω
- Controller Drive Type: Pulse Width Modulation at 15-30 kHz
- Shutter Drive Voltage: 12.0 VDC (Typical), 13.2 VDC (Max)
- Interface: RS485
- Operating Temp: 14 ~ 122 °F (-10 ~ 50 °C)
- DC Current: 50 ~ 140 mA
Controller Electrical Specifications
- External Modulation: RS485 Interface
- Manual Control Keys:
Open: open aperture
Close: close aperture
Remote Local: PC to Manual Mode Transition
Clear Error: Clearing errors
- PC Feedback Indicators: Software indicators
- Controller Feedback Indicators: LED indicators, (Red: Close), (Green: Open)
- AC Line Voltage: 100 - 240 VAC, 47 - 63 Hz
- AC Current: 1.5 A
Shutter Motion Specifications
- Motion Mode:
1- Ultra-Low Vibration,
2- Moderate Speed,
3- Fast Speed,
4- High Speed,
5- User-Defined
- Mode Timing:
Ultra-Low Vibration: 1.3 S
Moderate Speed: 0.8 S
Fast Speed: 0.6 S
High Speed: 0.5 S
User-Defined : Adjustable based on setting
*Note: Time measurement begins upon receiving an open or close command.
- Interface Timing: 20 ms
*Note: Timing starts immediately when the open or close button is activated in the software. Performance can vary depending on the computer's specifications.
